Stock ID : JT-IM-SD08-52
🔧 Machine Overview

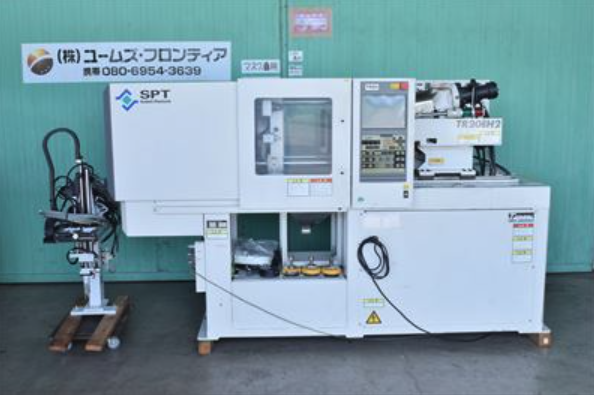

This is a 2008 Sodick TR20EH2 (20T) all-electric injection molding machine fully equipped with a HARMO take-out robot, manufactured in Japan.
- Model: Sodick TR20EH2
- Year of Manufacture: November 2008
- Clamping Force: 196 kN (20T class)
- Type: All-Electric (AC Servo Motor Control)
- Country of Origin: Japan
- Manufacturer: Sodick Plustech Co., Ltd.
⭐ Key Features
- 2008 Model
- 20 Ton All-Electric System
- Equipped with HARMO Take-Out Robot
- Suitable for small precision plastic parts
- Stable and automated operation
💰 Asking Price: USD 7,900 (FOB）
Inspection under power is available upon request.
This price is based on FOB Japan terms.
Inland transport, ocean freight, and marine insurance are not included.
CIF quotation can be provided upon request depending on the destination port.
Additional photos and videos are available upon request.
🏦 Payment Method
• Bank transfer in USD is accepted.
We can receive USD payments via our international bank account (Wise).
📹 Operation Video – Sodick TR20EH2 (20T)
Note regarding the video sound:
The alarm sound heard in the video is due to transportation preparation settings.
There are no mechanical issues. The machine is in normal working condition and inspection is welcome in Japan.e in Japan.
The machine is currently under power and can be inspected in Japan.
Video taken in January, 2026.
Detailed Photos
 Rear View |  Clamping Unit Interior |
 Clamping Unit Interior |  Control Panel (TRD6 Screen) |
 Model Name Close-up (TR20EH2) |  Name Plate (Nov 2008) |
 Electrical Panel (Main Breaker Area) |  HARMO Take-out Robot (Overall View) |
 HARMO Take-out Robot (Overall View) |  HARMO Robot Name Plate (Dec 2008, Made in Japan) |
Machine Condition
🔹 Operating History & Utilization
- Total operating hours: 85,739.3 hours
- Total shot count: 19,075,231 shots
- The machine is currently in good working condition and available for powered inspection in Japan.
Based on total operating hours over 17 years, utilization rate is approximately 58%, indicating moderate industrial use.
🔹 Shot Count Analysis
Based on a total of 19,075,231 shots over 85,739 operating hours,
the machine averages approximately:
- 222 shots per hour
- 3.7 shots per minute
This indicates stable and moderate production use over its service life,
rather than continuous high-speed operation.
The data suggests long-term steady operation under controlled industrial conditions.
Based on industry reference for a 20-ton all-electric precision molding machine, this level of shot frequency is considered appropriate and not indicative of excessive high-speed production.
Included Equipment
Sodick HARMO Take-Out Robot( Included )
- Model: EX III-60
- Controller: HRS-12
- Manufactured: December 2008 (Made in Japan)
Specifications
🔹Clamping Unit
- Mold moving system: AC Servo motor control
- Clamping system: Direct pressure
- Tie bar distance: 310 × 310 mm
- Platen size: 440 × 440 mm
- Open daylight: 400 mm
- Mold thickness: Min. 150 mm
- Mold open / close force: 6.6 / 13.2 kN
- Ejector force: 7.3 / 4.3 kN
- Ejector stroke: 50 mm
🔹Injection Unit
- Injection system: Screw pre-plasticizing
- Currently installed screw size: 22 mm
- Screw diameter options: 14 / 18 / 22 mm
- Plunger Diameter : 12 / 16/ 22 mm
- Max. injection pressure: 259 – 288 MPa (depending on screw size)
- Theoretical injection volume: 4.5 – 27 cm³ (depending on screw size)
- Max. injection speed: 500 mm/s
- Plasticizing capacity: 3.5 – 10.5 kg/h
- Heater capacity: 4.9 – 6.1 kW
- Temperature control zones: 5
Currently installed screw size: 22 mm (S22 × P22 specification)
🔹 Electrical Requirements
- Power supply: AC200/220V ±10%, 50/60Hz, 3 Phase
- Required power capacity: approx. 31–33 kVA
- AC servo motor capacity: 2.9 kW
- Hydraulic pump motor capacity: 5.5 kW
🔹 Machine Dimensions
- Machine size: 2623 × 930 × 1649 mm
- Machine weight: approx. 2200 kg
🔹 Features
✔ Fully electric precision control
✔ Energy saving compared to hydraulic machines
✔ Compact footprint
✔ High repeatability for precision parts
✔ Made in Japan reliability
🔹 Download Specifications (PDF)
Detailed official specifications are available below.
Please download the PDF for full technical details.
Why This Machine?
Sodick electric machines are known for:
- Stable molding performance
- Clean operation (ideal for medical & electronic parts)
- Lower power consumption
- High precision servo control
This 20T model is especially suitable for small precision parts production.
📩 Contact
If you are contacting us directly, please feel free to reach out for:
• Final CIF/FOB confirmation
• Additional photos and videos
• On-site inspection in Japan (available upon request)
• Detailed shipping schedule and export documentation
WhatsApp: +81-80-8437-2162
E-mail: contact-info@olive-net.jp
We export worldwide and support professional overseas buyers.
You can also send your inquiry using the contact form via the button below.
Inventory Location & Sales Arrangement
This machine is currently owned and stored by our partner company in Japan.
Owner / Current Holder:
Yumes Frontier Co., Ltd.
460 Kugawara-cho, Suzuka City,
Mie 513-0005, Japan
This machine is listed with the owner’s permission.
For all inquiries, inspections, price negotiations, and export arrangements,
please contact Japan Trading directly. Japan Trading acts as the official sales and export support partner for this listing.
